Description

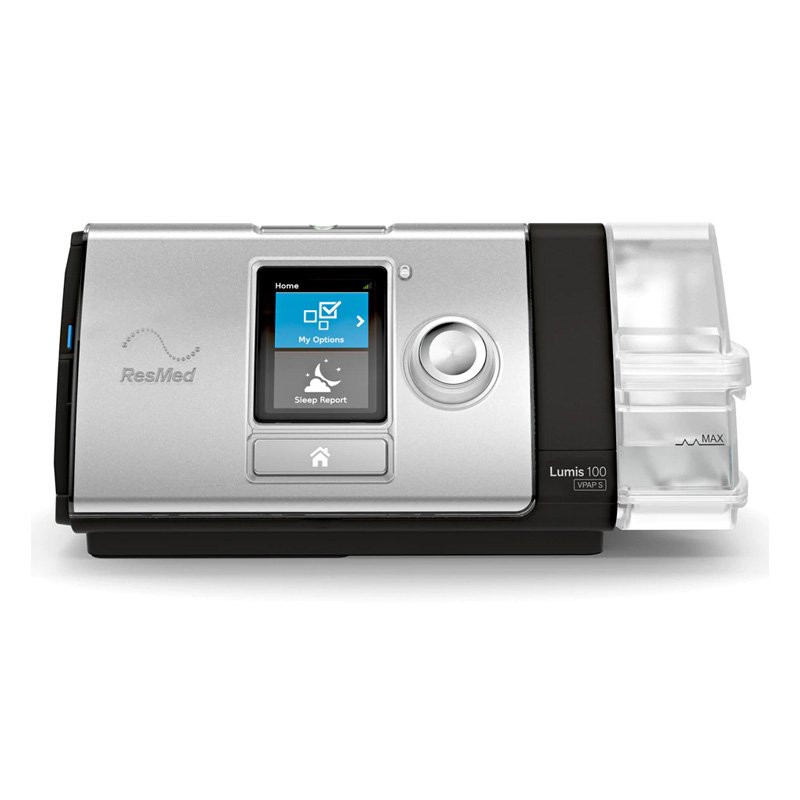

ResMed Lumis 100 VPAP ST
The ResMed Lumis 100 VPAP ST is a non-invasive ventilation device designed for non-dependent patients with respiratory insufficiency. It provides S, T and ST ventilation modes along with CPAP and PAC modes, and incorporates ResMed technologies designed to improve patient-device synchrony, ventilation comfort and therapy management.
Key Features
Multiple Therapy Modes
Supports CPAP, S, T, ST and PAC ventilation modes.
Supports CPAP, S, T, ST and PAC ventilation modes.
Intelligent Backup Rate
Optional intelligent Backup Rate (iBR) functionality in ST mode.
Optional intelligent Backup Rate (iBR) functionality in ST mode.
Vsync Technology
Leak-management technology designed to support patient-device synchrony.
Leak-management technology designed to support patient-device synchrony.
TiControl Technology
Helps manage inspiratory timing during non-invasive ventilation.
Helps manage inspiratory timing during non-invasive ventilation.
Trigger & Cycle Sensitivity
Five trigger and cycle sensitivity levels for customizable therapy.
Five trigger and cycle sensitivity levels for customizable therapy.
QuickNav Interface
Simplifies navigation and therapy-setting adjustment.
Simplifies navigation and therapy-setting adjustment.
Ramp & Ramp Down
Supports comfortable therapy initiation and pressure transition.
Supports comfortable therapy initiation and pressure transition.
Climate Control Auto
Available when used with HumidAir heated humidifier and ClimateLineAir heated tubing.
Available when used with HumidAir heated humidifier and ClimateLineAir heated tubing.
Built-in Wireless Connectivity
Supports compatible AirView remote therapy-management services.
Supports compatible AirView remote therapy-management services.
ResScan Software Support
Compatible with ResScan patient-management software.
Compatible with ResScan patient-management software.
Colour LCD Screen
Clear colour interface for therapy information and device settings.
Clear colour interface for therapy information and device settings.
Continuous Leak Management
Helps maintain stable ventilation during changes in mask leakage.
Helps maintain stable ventilation during changes in mask leakage.
Easy-Breathe Motor
Enhanced motor technology designed for quieter and smoother therapy.
Enhanced motor technology designed for quieter and smoother therapy.
SpO₂ Monitoring
Supports SpO₂ monitoring when a compatible oximeter and module are connected.
Supports SpO₂ monitoring when a compatible oximeter and module are connected.
Advanced Ventilation Support
Designed for Comfortable Non-Invasive Ventilation
The ResMed Lumis 100 VPAP ST combines multiple ventilation modes with intelligent synchronization, leak-management and inspiratory timing technologies. These features help provide responsive, comfortable and reliable non-invasive ventilation for suitable patients under medical supervision.
ResMed Lumis 100 VPAP ST Technical Specifications
| Specification | ResMed Lumis 100 VPAP ST |
|---|---|
| Brand | ResMed |
| Model | Lumis 100 VPAP ST |
| Type | Non-invasive ventilator / VPAP ST |
| Therapy Modes | CPAP, S, T, ST, PAC |
| Pressure Range – S/T/PAC | 2–25 cmH₂O |
| Pressure Range – CPAP | 4–20 cmH₂O |
| Respiratory Rate | 5–50 breaths/min |
| Supplemental Oxygen | Recommended maximum 15 L/min |
| Display | Colour LCD |
| Sound Pressure Level | 26.6 dBA ± 2 dBA |
| Dimensions – Device Only | 116 × 205 × 150 mm |
| Dimensions – With Humidifier | 116 × 255 × 150 mm |
| Weight – Device Only | 1.106 kg |
| Weight – With Humidifier | 1.268 kg |
| Power Supply | 90 W |
| Input Supply | 100–240 V, 50–60 Hz |
| Typical Power Consumption | 57 VA |
| Peak Power Consumption | 108 VA |
| Operating Temperature | +5°C to +35°C |
| Operating Humidity | 10–95% RH, non-condensing |
| Operating Altitude | Sea level to 2,591 m |
| Standard Air Filter | Polyester non-woven fibre |
| Air Outlet | 22 mm |
| Tubing |
SlimLine / ClimateLineAir 15 mm; Standard / ClimateLineAir Oxy 19 mm |
| Ingress Protection | IP22 |
| Electrical Classification | Class II, Type BF |
Accessories
- Air tubing
- Power supply unit
- Power cord
- Standard air filter
- HumidAir heated humidifier
