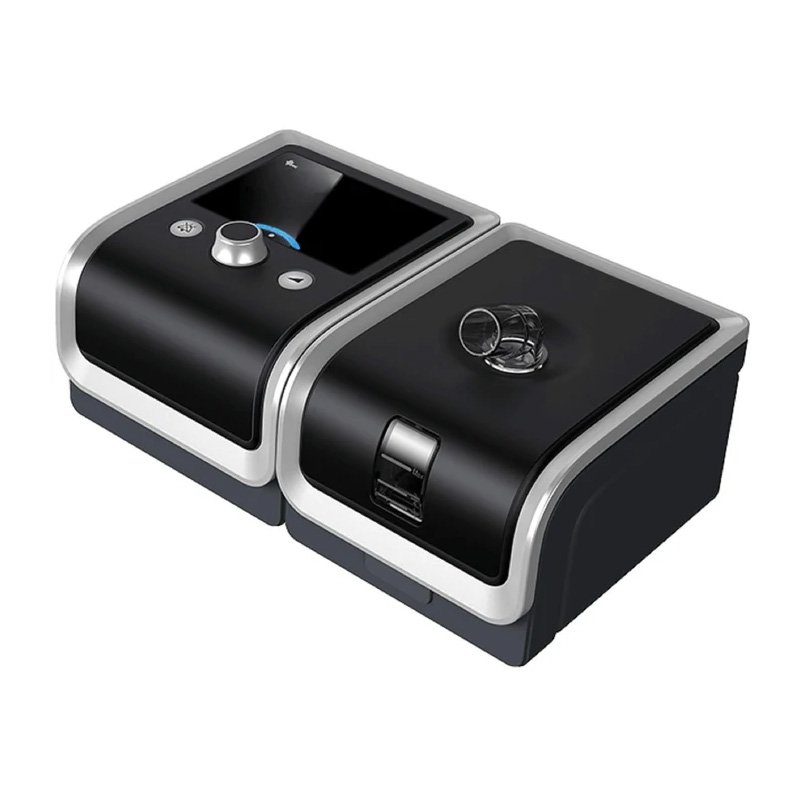

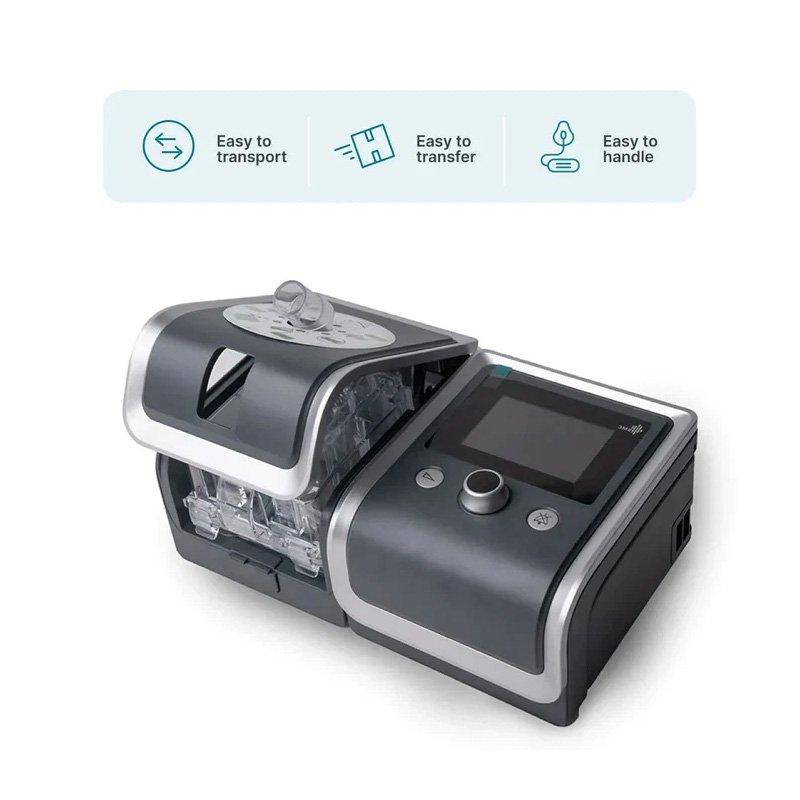

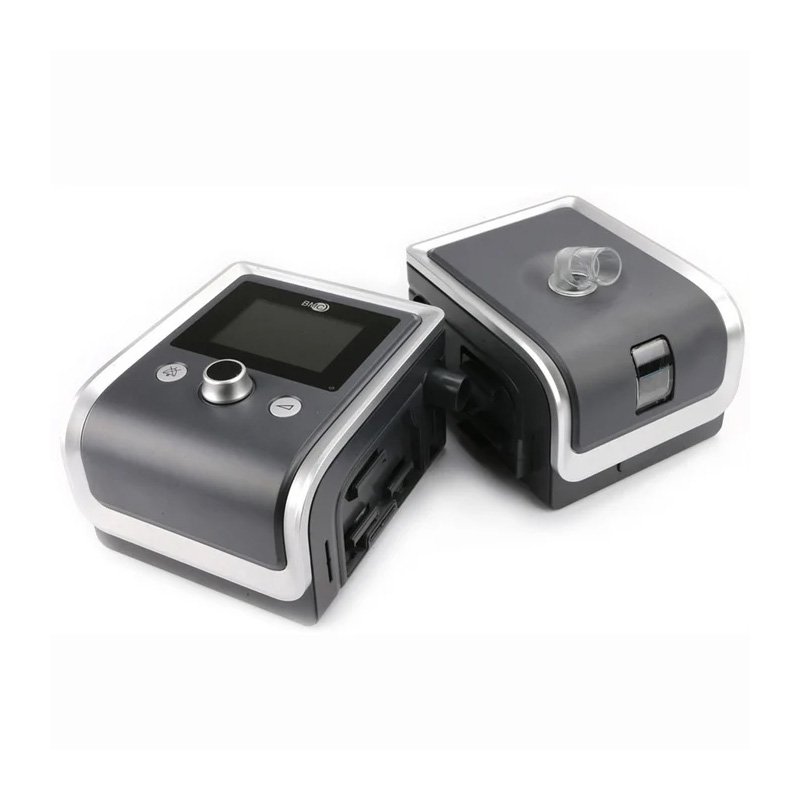

BMC RESmart GII Y-25T BPAP System
The BMC RESmart GII Y-25T is a bilevel positive airway pressure (BPAP) system intended to provide non-invasive ventilation for adult patients with obstructive sleep apnea (OSA) and/or respiratory insufficiency, by prescription. It supports CPAP, S, T and S/T modes, with a maximum IPAP pressure of 25 cmH₂O and a Target Tidal Volume function.
Key Features
Target Tidal Volume
Provides pressure support according to changing ventilation needs.
Provides pressure support according to changing ventilation needs.
Multiple Therapy Modes
Supports CPAP, S, T and S/T therapy modes.
Supports CPAP, S, T and S/T therapy modes.
IPAP 4–25 cmH₂O
Adjustable inspiratory positive airway pressure from 4–25 cmH₂O.
Adjustable inspiratory positive airway pressure from 4–25 cmH₂O.
EPAP 4–25 cmH₂O
Adjustable expiratory positive airway pressure from 4–25 cmH₂O.
Adjustable expiratory positive airway pressure from 4–25 cmH₂O.
CPAP 4–20 cmH₂O
CPAP pressure range from 4–20 cmH₂O.
CPAP pressure range from 4–20 cmH₂O.
3.5-inch Colour Screen
Clear colour display for device settings and therapy information.
Clear colour display for device settings and therapy information.
Intelligent Synchronization
Intelligent synchronization technology for responsive therapy.
Intelligent synchronization technology for responsive therapy.
Trigger Sensitivity
Adjustable inspiratory and expiratory trigger sensitivity.
Adjustable inspiratory and expiratory trigger sensitivity.
Inspiration-Time Control
Provides inspiration-time control for respiratory support.
Provides inspiration-time control for respiratory support.
Leakage Compensation
Automatic leakage compensation during therapy.
Automatic leakage compensation during therapy.
Altitude Compensation
Automatic altitude compensation for changing environments.
Automatic altitude compensation for changing environments.
Reslex Function
Expiratory pressure-release function designed to improve comfort.
Expiratory pressure-release function designed to improve comfort.
Eco Smart Heating
Eco Smart heating system for humidification.
Eco Smart heating system for humidification.
15 mm Tubing Support
Supports compact 15 mm breathing tubing.
Supports compact 15 mm breathing tubing.
SD Card Recording
Records patient therapy data and device fault information.
Records patient therapy data and device fault information.
Target Tidal Volume
Adaptive Ventilation Support
The BMC RESmart GII Y-25T includes a Target Tidal Volume function designed to provide pressure support according to
the patient’s changing ventilation requirements, helping deliver respo nsive bilevel respiratory therapy.
BMC RESmart GII Y-25T Technical Specifications
| Specification | BMC RESmart GII Y-25T |
|---|---|
| Brand | BMC Medical |
| Series | RESmart GII |
| Model | Y-25T |
| Type | BPAP / Bi-level PAP |
| Display | 3.5-inch colour screen |
| IPAP Range | 4–25 cmH₂O |
| EPAP Range | 4–25 cmH₂O |
| CPAP Range | 4–20 cmH₂O |
| Therapy Modes | CPAP, S, T, S/T |
| Target Tidal Volume | Yes |
| SD Card | Patient data & fault information |
| AC Power | 100–240 V AC, 50/60 Hz |
| Device Dimensions | 170 × 180 × 118 mm |
| Weight | 1.5 kg |
| Dimensions with Humidifier | 290 × 180 × 134 mm |
| Weight with Humidifier | 2.5 kg |
| Operating Temperature | 5–35°C |
| Operating Humidity | 15–93% RH, non-condensing |
| Atmospheric Pressure | 760–1060 hPa |
| Mode of Operation | Continuous |
| Protection Class | Class II |
| Applied Part | Type BF |
| Ingress Protection | IP22 |

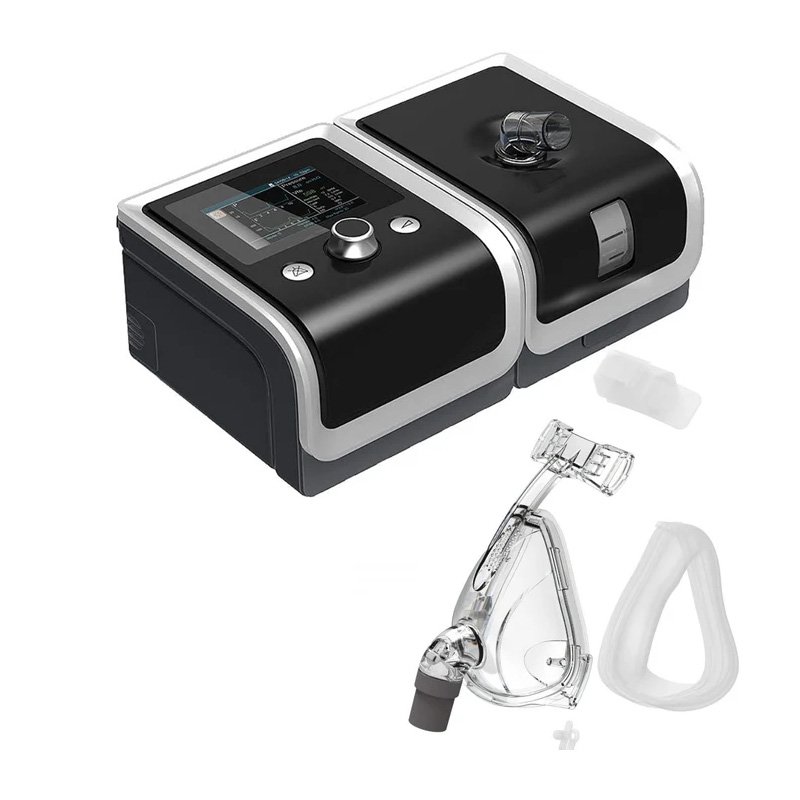

Accessories
- Heated humidifier / water chamber
- Breathing tube
- BiPAP mask
- Power cord
- Power adapter / AC power supply
- Air filter
- SD card
- User manual
- Carrying / travel bag
