Description
BMC RESmart GII Y-30T BPAP System
The BMC RESmart GII Y-30T is a Bi-level Positive Airway Pressure (BPAP) system designed to provide non-invasive ventilation for adult patients with obstructive sleep apnea (OSA) and/or respiratory insufficiency, under medical prescription. It supports CPAP, S, T and S/T therapy modes, with a maximum working pressure of 30 cmH₂O, and includes Target Tidal Volume functionality.
Key Features
Target Tidal Volume
Automatically adjusts pressure support according to the target tidal volume.
Automatically adjusts pressure support according to the target tidal volume.
Multiple Therapy Modes
Supports CPAP, S, T and S/T respiratory therapy modes.
Supports CPAP, S, T and S/T respiratory therapy modes.
4–30 cmH₂O Pressure Range
Provides a wide therapy pressure range up to 30 cmH₂O.
Provides a wide therapy pressure range up to 30 cmH₂O.
3.5-inch Colour LCD
Clear colour display for viewing therapy information and device settings.
Clear colour display for viewing therapy information and device settings.
Intelligent Synchronization
Designed to improve patient-device synchronization during bilevel therapy.
Designed to improve patient-device synchronization during bilevel therapy.
Adjustable Trigger Sensitivity
Inspiratory and expiratory trigger sensitivity can be adjusted for patient comfort.
Inspiratory and expiratory trigger sensitivity can be adjusted for patient comfort.
Inspiratory Time Control
Provides control over inspiratory timing for respiratory support.
Provides control over inspiratory timing for respiratory support.
Automatic On / Off
Convenient automatic start and stop functionality.
Convenient automatic start and stop functionality.
Leak Compensation
Automatic leak compensation helps maintain effective therapy.
Automatic leak compensation helps maintain effective therapy.
Altitude Compensation
Automatically compensates for changes in altitude.
Automatically compensates for changes in altitude.
Reslex Pressure Relief
Expiratory pressure relief designed to improve breathing comfort.
Expiratory pressure relief designed to improve breathing comfort.
Eco Smart Heating
Eco Smart heating system supports comfortable humidification.
Eco Smart heating system supports comfortable humidification.
15 mm Tubing Support
Compatible with compact 15 mm breathing tubing.
Compatible with compact 15 mm breathing tubing.
SD Card Storage
Supports SD card storage for patient therapy data.
Supports SD card storage for patient therapy data.
Data Management
Supports iCode, iCode QR and iCode QR+ data-management options.
Supports iCode, iCode QR and iCode QR+ data-management options.
Target Tidal Volume
Adaptive Pressure Support
The BMC RESmart GII Y-30T includes Target Tidal Volume functionality. The system automatically adjusts inspiratory pressure to provide appropriate pressure support according to the prescribed target tidal volume and the patient’s changing ventilation requirements.
BMC RESmart GII Y-30T Technical Specifications
| Specification | BMC RESmart GII Y-30T |
|---|---|
| Brand | BMC Medical |
| Series | RESmart GII |
| Model | Y-30T |
| Type | BPAP / Bi-level PAP |
| Display | 3.5-inch LCD |
| Pressure Range | 4–30 cmH₂O |
| Maximum Work Pressure | 30 cmH₂O |
| Therapy Modes | CPAP, S, T, S/T |
| Target Tidal Volume | Yes |
| Automatic On/Off | Yes |
| Leak Compensation | Yes |
| Altitude Compensation | Yes |
| Reslex | Yes |
| Eco Smart Heating System | Yes |
| Tubing Support | 15 mm tubing supported |
| SD Card | Yes |
| Data Management | iCode / iCode QR / iCode QR+ |
| Wi-Fi / Cellular | Available as optional connectivity accessories |

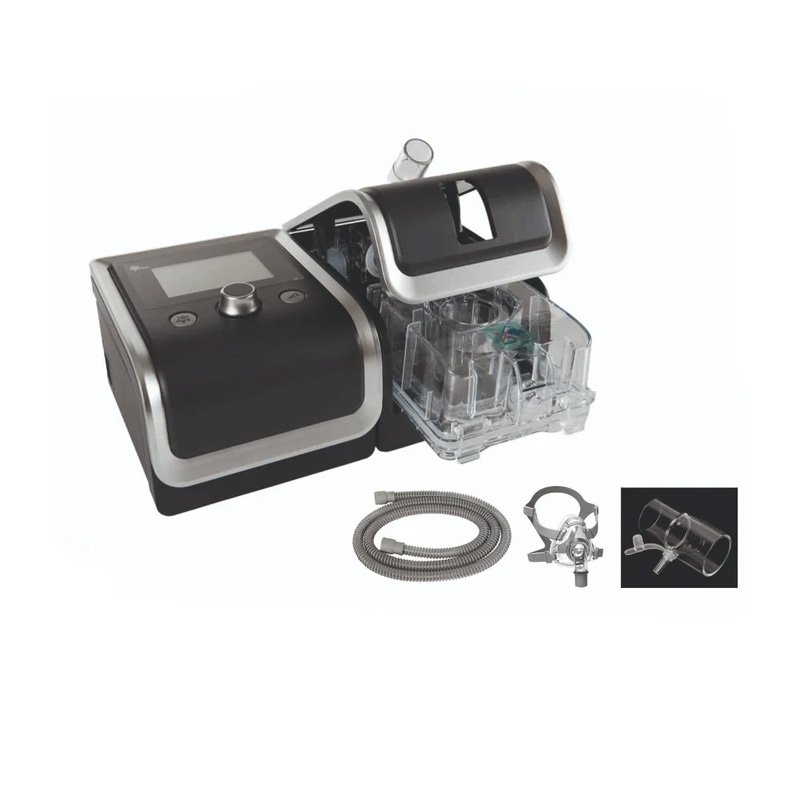

Accessories
- Heated humidifier / water chamber
- Breathing tube
- BiPAP mask
- Power cord
- Power adapter / AC power supply
- Air filter
- SD card
- User manual
- Carrying / travel bag
